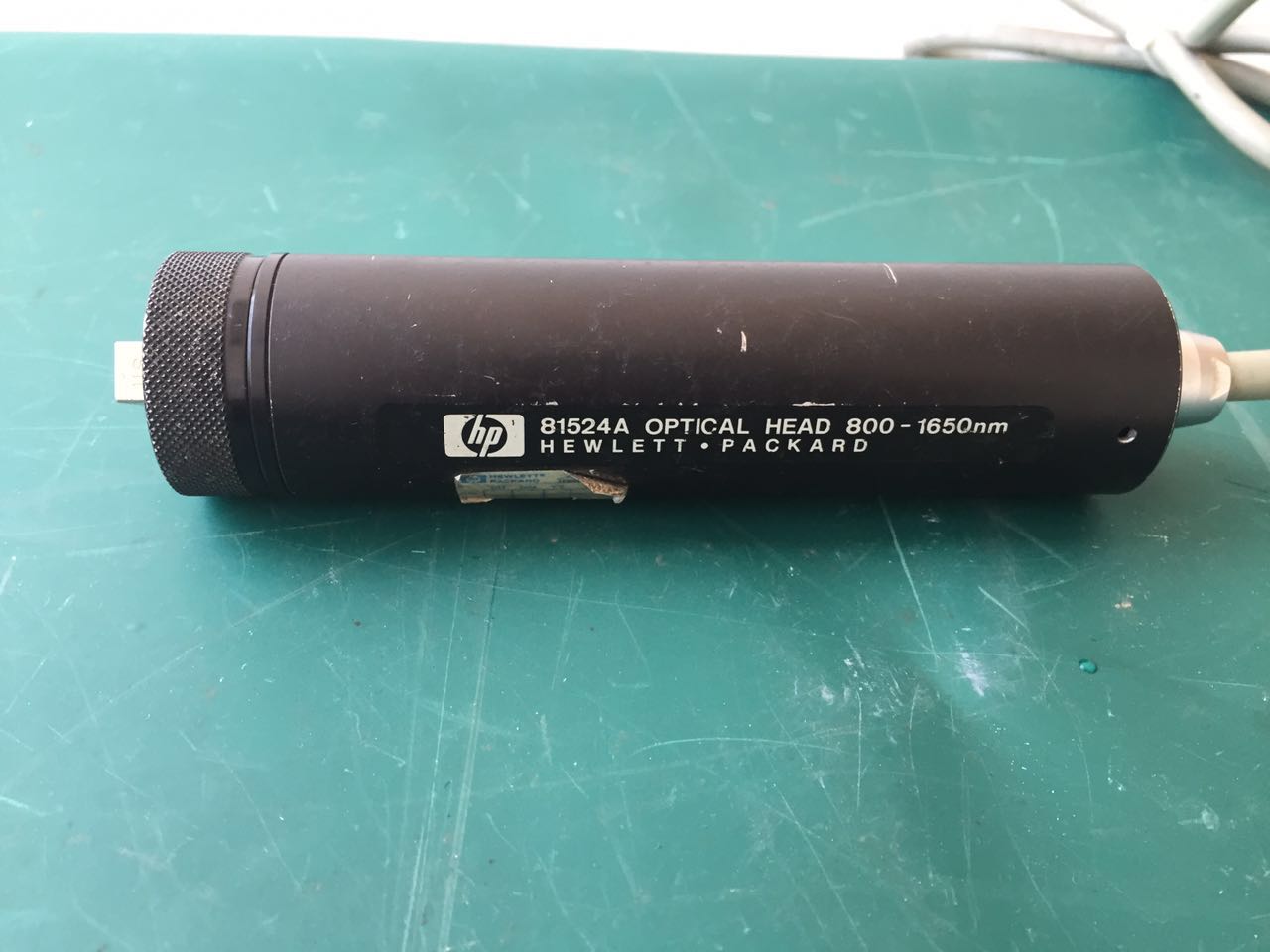

Agilent/HP/81524A/光功率探頭

• Agilent/HP/81524A/光功率探頭
• 欲購買或租賃Agilent/HP/81524A/光功率探頭？請在線咨詢或拔打24小時電話：13715327187

詳細資料：

Specifications at a glance for the 81524A:
  - Wavelength Range: 800 to 1650 nm
  - Detector Type (Sensor Element): InGaAs
  - Detector Size (diameter): 5 mm
  - Power Range: -90 to +3 dBm
  - Wavelength Accuracy (Uncertainty): +/- 2.2% (1000 to 1600 nm)


Additional Information
The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand.

Applicable Fiber Type: Standard Single-mode And Multimode max. 100 um core size, NA < 0.3
Linearity: -70 to +3 dBm
Connector Type Options:

  - 81000FA: FC/PC connector adapter
  - 81000KA: SC/PC connector adapter
  - 81000PA: E-2000 connector adapter
  - 81000VA: ST/PC connector adapter
  - 81003LA : LC/PC connector adapter

儀器保證：

我們的大多數設備在裝運之前均經過嚴格的質量檢測與校驗。也可申請國家計量證書。
